Finally I have my hands on the first batch. Very happy. Here are some unedited photos I took just now:

Back to Top
jversch View Drop Down
Senior Member
Senior Member
Avatar

Joined: 25-March-2013
Location: Canandaigua NY
Status: Offline
Points: 316
Post Options Post Options   Thanks (0) Thanks(0)   Quote jversch Quote  Post ReplyReply Direct Link To This Post Posted: 19-March-2018 at 4:35AM
Looks really good . When will you be shipping them . I put in for one , you should have my name down. if not PM me and I will get the info to you .
Jerry VerSchneider
1972 Gran torino formal roof H Code
1973 Gran torino fast back H code.
Back to Top
NeillNZ View Drop Down
Member
Member


Joined: 27-June-2016
Location: Wellington, NZ
Status: Offline
Points: 40
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeillNZ Quote  Post ReplyReply Direct Link To This Post Posted: 19-March-2018 at 11:49AM
Originally posted by jversch jversch wrote:

Looks really good . When will you be shipping them . I put in for one , you should have my name down. if not PM me and I will get the info to you .

IHope to send them all to Andy by the end of this week or early next week at the latest.  I need to cut them out, fit the snaps, inspect and Andy and I are still working on the documentation.

It will take about a week to get to him and then he can start sending them out.

Back to Top
andrewok1 View Drop Down
Senior Member
Senior Member
Avatar

Joined: 02-June-2015
Location: OCALA FL
Status: Offline
Points: 390
Post Options Post Options   Thanks (0) Thanks(0)   Quote andrewok1 Quote  Post ReplyReply Direct Link To This Post Posted: 19-March-2018 at 12:10PM
i am figuring around the 10th of April for shipping , Neill is going to post aalink to all of the people that has requested all ready  ,I have a list and will forward it to Neil /ANDY
GET IT GOT IT GONE !!!!!!!
Back to Top
jversch View Drop Down
Senior Member
Senior Member
Avatar

Joined: 25-March-2013
Location: Canandaigua NY
Status: Offline
Points: 316
Post Options Post Options   Thanks (1) Thanks(1)   Quote jversch Quote  Post ReplyReply Direct Link To This Post Posted: 12-April-2018 at 5:37AM
I got mine in the mail yesterday . Looks great .Thumbs UpClapClap
Jerry VerSchneider
1972 Gran torino formal roof H Code
1973 Gran torino fast back H code.
Back to Top
andrewok1 View Drop Down
Senior Member
Senior Member
Avatar

Joined: 02-June-2015
Location: OCALA FL
Status: Offline
Points: 390
Post Options Post Options   Thanks (0) Thanks(0)   Quote andrewok1 Quote  Post ReplyReply Direct Link To This Post Posted: 12-April-2018 at 5:47AM
GET IT GOT IT GONE !!!!!!!
Back to Top
andrewok1 View Drop Down
Senior Member
Senior Member
Avatar

Joined: 02-June-2015
Location: OCALA FL
Status: Offline
Points: 390
Post Options Post Options   Thanks (0) Thanks(0)   Quote andrewok1 Quote  Post ReplyReply Direct Link To This Post Posted: 17-April-2018 at 1:03AM
i have these on craigslist as well mention this site ,shipped they are listed a t 150.00 otherwise,we have 5 yet to sell , a few people never got back to me / ANDY




Edited by andrewok1 - 25-June-2019 at 12:29PM
GET IT GOT IT GONE !!!!!!!
Back to Top
NeillNZ View Drop Down
Member
Member


Joined: 27-June-2016
Location: Wellington, NZ
Status: Offline
Points: 40
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeillNZ Quote  Post ReplyReply Direct Link To This Post Posted: 19-April-2018 at 12:24AM
The Sport cluster has arrived from Andy. I have started tracing the circuit. Still a couple of cut-outs to trace, my eyes are too tired right now. Once I've done those two cut-outs I'll have this made as a mech and trial fit it to the cluster/housing. I'm sure there will be some adjustments as there are a lot of peg holes in this design to get exactly right.

Back to Top
Timustbe View Drop Down
Member
Member
Avatar

Joined: 15-March-2018
Location: Oahu, HI
Status: Offline
Points: 89
Post Options Post Options   Thanks (0) Thanks(0)   Quote Timustbe Quote  Post ReplyReply Direct Link To This Post Posted: 01-May-2018 at 12:17PM
Is it true the sport cluster is ready?  I am very interested in obtaining one.
Tim Northcutt

'72 Ford Gran Torino Sport (Pearl White)
'02 HD Road King Classic (Luxury Blue and Diamond Ice)
Back to Top
rancheromac View Drop Down
Member
Member


Joined: 12-August-2013
Location: IOWA
Status: Offline
Points: 56
Post Options Post Options   Thanks (0) Thanks(0)   Quote rancheromac Quote  Post ReplyReply Direct Link To This Post Posted: 18-September-2020 at 3:56AM
I have a 79 w/ transplanted 460. I got a 120 speedo from a 76 that had a 460. do I still need the shunt set up for the factory tach ? I plan on putting aftermarket oil and volt meters
Back to Top
andrewok1 View Drop Down
Senior Member
Senior Member
Avatar

Joined: 02-June-2015
Location: OCALA FL
Status: Offline
Points: 390
Post Options Post Options   Thanks (0) Thanks(0)   Quote andrewok1 Quote  Post ReplyReply Direct Link To This Post Posted: 18-September-2020 at 6:24AM
yes
GET IT GOT IT GONE !!!!!!!
Back to Top
californiajohnny View Drop Down
Moderator Group
Moderator Group
Avatar

Joined: 05-October-2013
Location: winlock, wa
Status: Offline
Points: 12911
Post Options Post Options   Thanks (0) Thanks(0)   Quote californiajohnny Quote  Post ReplyReply Direct Link To This Post Posted: 18-September-2020 at 2:04PM
the shunt in the diagram is for the ammeter... so installing a volt meter i dont think you'll need to worry about it?
JOHN
74 GRAN TORINO S&H CLONE
74 VETTE CUSTOM
90 S10 BLAZER 4X4 LIFTED
77 CELICA CUSTOM
75 V8 MONZA SUPERCHARGED
79 COURIER VERT. SLAMMED
75 VEGA V6 5 SPD
70 CHEV C10 P/U
68 MUSTANG FB CONVERSION
Back to Top
squarethumps View Drop Down
Member
Member


Joined: 30-August-2015
Location: Hunker Pa
Status: Offline
Points: 76
Post Options Post Options   Thanks (0) Thanks(0)   Quote squarethumps Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 11:55AM
Hi - going to butt in here for a second, as there are numerous posts about swapping a sport cluster in to a standard cluster. Interestingly, this thread I started here :


http://forum.grantorinosport.org/topic18750.html

torino thread on electrical cluster

discusses the status of my attempt to install what I believe to be a '74 Sport Gauge Cluster into a '76 Standard wiring. Page 2 has the latest analysis of what I've investigated and what I think I need to do. I was not able to determine a couple of changes, so there is some question there, if anyone might offer an opinion.   Reading earlier in this thread ( which - BTW - WOW NICE WORK GUYS!!!! ), this post in the link below seems to identify the same things I did, only better and more correctly. The post says to "correct <Mr. Zebra> if he is wrong", and I did not see anyone correct him. So the question is : Is he, and I ( if I move wire 10 to wire 11 position, and wire 11 to wire 12 position as his post suggests ) correct with which wires need to move to put this '74 Gauge Cluster into a '76 standard harness ? It must be noted that his post is about putting a '77 Sport Gauge cluster ( I didn't think "Sports" were made after '75? ) into a '76.

http://forum.grantorinosport.org/forum_posts.asp?TID=2933&PID=74737&title=info-72-79-gauge-clusters-and-wiring#74737


Thanks ahead of time to all who take the time to read and help out.

(California Johnny is already a part of the other thread and has been most helpful)

I'll also put another post script here about the P.C. and position 12 how there is a break in the circuitry right beside the connector, and I don't understand that, and I'm not sure if Zebra's cluster P.C. has that or not ?

Edited by squarethumps - 28-November-2020 at 1:20PM
Back to Top
Steve M. View Drop Down
Senior Member
Senior Member


Joined: 08-June-2019
Location: Florida
Status: Offline
Points: 625
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve M. Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 1:26PM
See if this helps
Steve M.
Back to Top
Steve M. View Drop Down
Senior Member
Senior Member


Joined: 08-June-2019
Location: Florida
Status: Offline
Points: 625
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve M. Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 1:35PM
Steve M.
Back to Top
squarethumps View Drop Down
Member
Member


Joined: 30-August-2015
Location: Hunker Pa
Status: Offline
Points: 76
Post Options Post Options   Thanks (0) Thanks(0)   Quote squarethumps Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 1:37PM
That picture ( the FIRST picture you posted which is sideways ) does seem to confirm what my wiring male ( on the car ) connection will have AFTER I've finished moving the wires. I am literally moving them right now. I'm rather excited to see ... something ? dash lights ? fuel level ? It will be the first time I've seen anything.

( This will be, of course, if I didn't already ruin one or more of the components by plugging the connection in already and running the car. )

Edited by squarethumps - 28-November-2020 at 1:42PM
Back to Top
Steve M. View Drop Down
Senior Member
Senior Member


Joined: 08-June-2019
Location: Florida
Status: Offline
Points: 625
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve M. Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 1:38PM

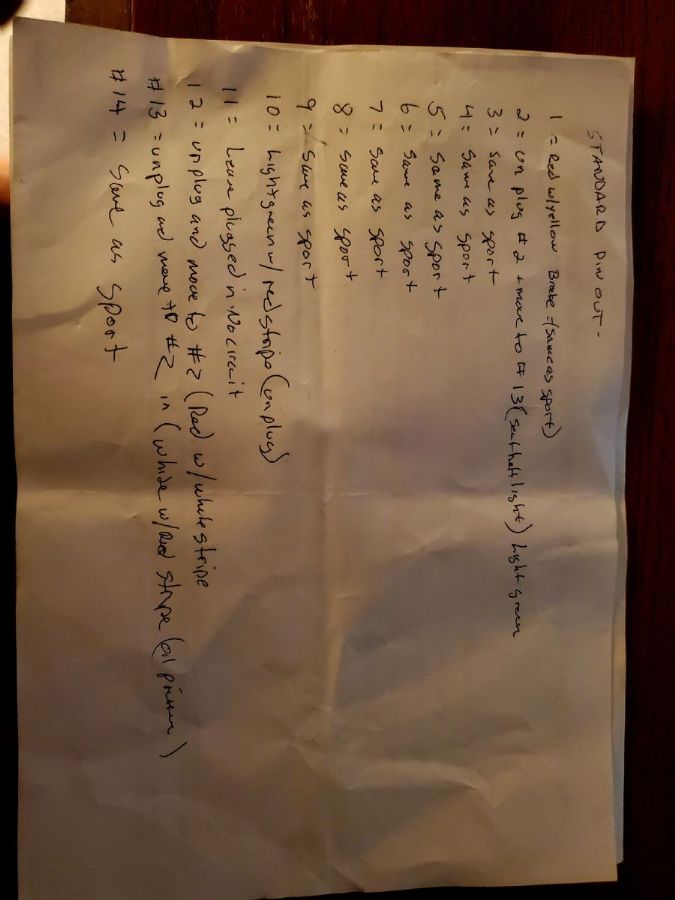

These are my notes for doing exactly what you're doing.
Steve M.
Back to Top
squarethumps View Drop Down
Member
Member


Joined: 30-August-2015
Location: Hunker Pa
Status: Offline
Points: 76
Post Options Post Options   Thanks (0) Thanks(0)   Quote squarethumps Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 1:41PM
Originally posted by Steve M. Steve M. wrote:




hmmmm .... this one really causes confusion for me now .. what I see and tracked down for pins 1 and 14 seem to show the opposite of what is hand written in that picture ?   Are we sure about those hand written notes ? Or maybe I'm missing something ?
Back to Top
Steve M. View Drop Down
Senior Member
Senior Member


Joined: 08-June-2019
Location: Florida
Status: Offline
Points: 625
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve M. Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 1:49PM
If for some reason the oil pressure and temperature gauges are switched, just switch the gauge position in the cluster.
Steve M.
Back to Top
Steve M. View Drop Down
Senior Member
Senior Member


Joined: 08-June-2019
Location: Florida
Status: Offline
Points: 625
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve M. Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 2:29PM
Thats correct.  Ford had different pin outs in the 1976 model. I  used the diagram with the color coded wires pictured above.  It worked like a charm.
  Basically your going to move the oil pressure and temperature gauge wires to the correct location in the connector. My two leftover wires went into the two unused positions.
Steve M.
Back to Top
Steve M. View Drop Down
Senior Member
Senior Member


Joined: 08-June-2019
Location: Florida
Status: Offline
Points: 625
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve M. Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 2:33PM
My hand written notes are what I started with. I was not the 1st person to mess with the cars wires.
Steve M.
Back to Top
squarethumps View Drop Down
Member
Member


Joined: 30-August-2015
Location: Hunker Pa
Status: Offline
Points: 76
Post Options Post Options   Thanks (0) Thanks(0)   Quote squarethumps Quote  Post ReplyReply Direct Link To This Post Posted: 28-November-2020 at 2:37PM
Ok -- now I understand, I think !    Thank you for the confirmations.

So..... I'm lazy and I don't want to post twice, so if anyone wants to follow my results, I'll be updating my original thread.   ( I just moved all the wires and tested with mixed results )

Also here for convenience:
http://forum.grantorinosport.org/topic18750.html

Thanks for the responses here.   Cheers.
